Step 3: SPARQL Query & qualify Function

Learn SPARQL basics and implement building qualification.

---

1. Understanding SPARQL for Brick

SPARQL queries RDF data (Brick models use RDF).

Basic Pattern:

SELECT ?variable WHERE {
    ?variable rdf:type brick:SomeClass .
}

Example - Find all temperature sensors:

SELECT ?sensor WHERE {
    ?sensor rdf:type/rdfs:subClassOf* brick:Temperature_Sensor .
}

Key Patterns: - ?variable - Variable (like wildcards) - rdf:type - "is a type of" - rdfs:subClassOf* - Includes subclasses - brick:hasPart - System/Loop has point (used by Hot_Water_Loop, Hot_Water_System) - brick:hasPoint - Equipment has point (used by Boiler, Pump, Weather_Station) - FILTER() - Filter results

Learn More: - Brick Docs: https://docs.brickschema.org/ - SPARQL Tutorial: https://www.w3.org/TR/sparql11-query/ - Brick Studio: https://brickstudio.io/

---

2. Visualize System Architecture

Before writing SPARQL, understand your target system architecture.

Reference Diagrams: See docs/Figures/Development_Guide/ for common patterns:

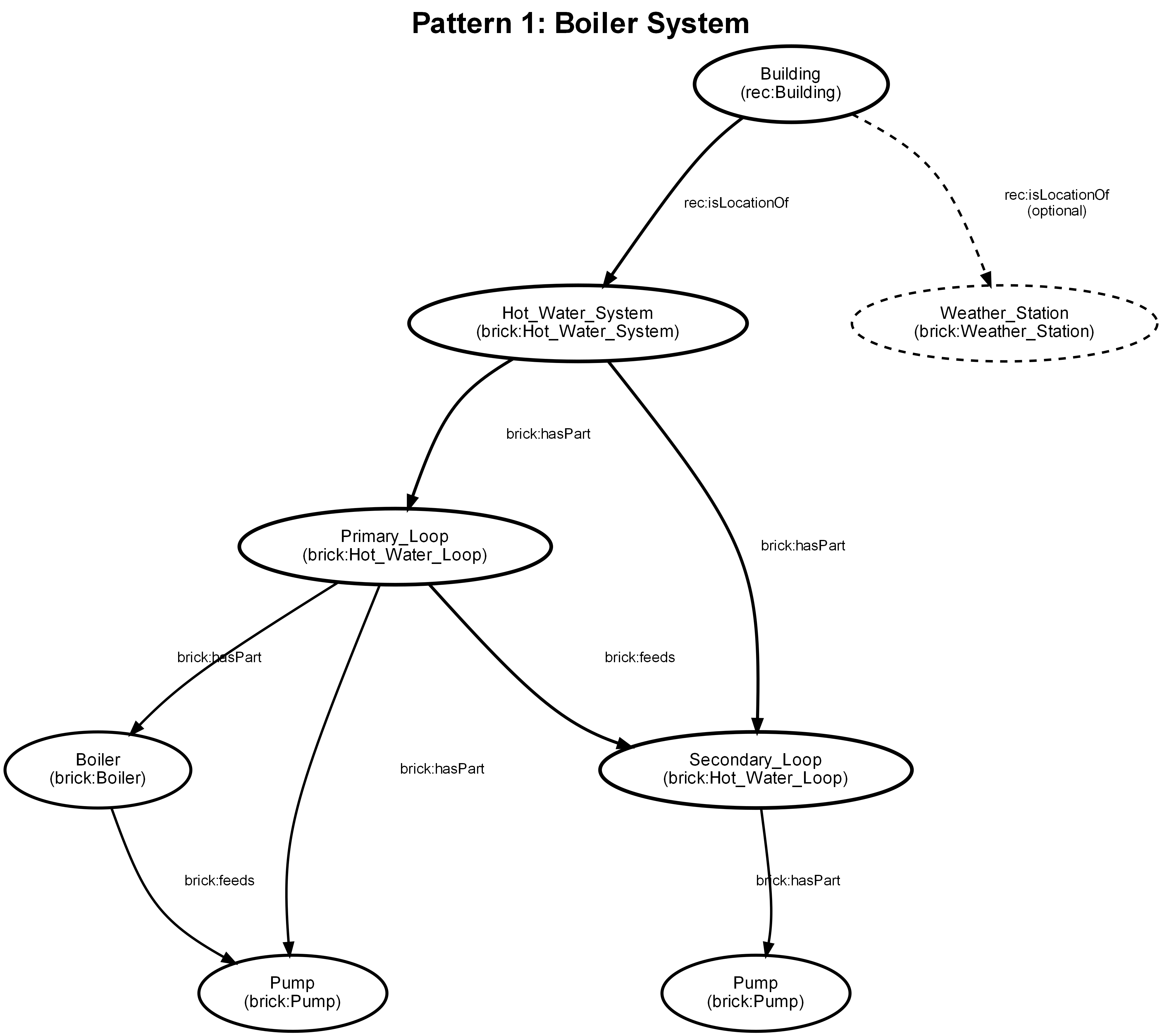

Pattern 1: Boiler System

• Equipment: Boiler, Hot_Water_Loop
• Sensors: Leaving/Entering Temperature Sensors
• Relationships: Loop hasPart sensors

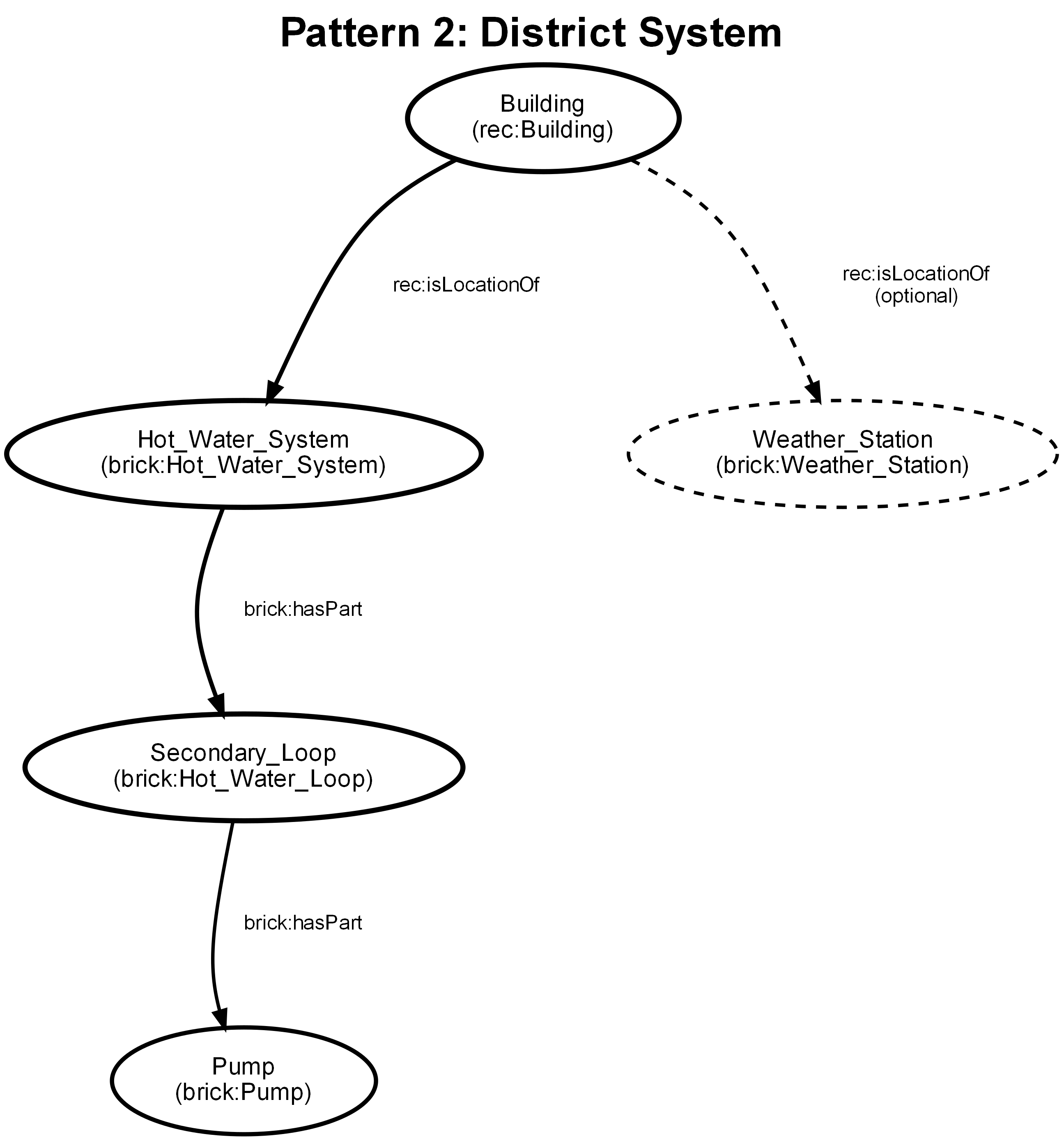

Pattern 2: District System

• Equipment: Heat_Exchanger, Hot_Water_Loop
• Sensors: Supply/Return Temperature Sensors
• Relationships: Loop hasPart sensors

How to Use Diagrams: 1. Identify equipment (rectangles) → Use in ?equipment rdf:type brick:Hot_Water_Loop 2. Identify sensors (circles) → Use in ?sensor rdf:type brick:Temperature_Sensor 3. Trace relationships (arrows) → Use in ?equipment brick:hasPart ?sensor

Understanding Point-Equipment Relationships

Before writing SPARQL queries, you need to know which points are connected to which equipment and the relationship type used. This information comes from sensor_to_brick_mapping.yaml.

Important: Relationship Types - Equipment (Boiler, Pump, Weather_Station) → Use brick:hasPoint to connect sensors - Systems/Loops (Hot_Water_System, Primary_Loop, Secondary_Loop) → Use brick:hasPart to connect sensors

Complete Point-to-Equipment Mapping:

Equipment/System	Relationship	Point Name	Point Type	Description
secondary_loop	hasPart	sup	Leaving_Hot_Water_Temperature_Sensor	Supply water temp entering building
	hasPart	ret	Entering_Hot_Water_Temperature_Sensor	Return water temp leaving building
	hasPart	flow	Flow_Sensor	Flow rate entering building
	hasPart	dp	Differential_Pressure_Sensor	End-of-line differential pressure
	hasPart	hw	Thermal_Power_Sensor	Heating power supplied to building
	hasPart	gas_u	Natural_Gas_Flow_Sensor	Gas consumption at utility meter
	hasPart	sup_stpt	Hot_Water_Temperature_Setpoint	Supply temp setpoint
	hasPart	dp_stpt	Differential_Pressure_Setpoint	Pressure setpoint
primary_loop	hasPart	supp	Leaving_Hot_Water_Temperature_Sensor	Common supply temp (primary circuit)
	hasPart	retp	Entering_Hot_Water_Temperature_Sensor	Common return temp (primary circuit)
	hasPart	flowp	Flow_Sensor	Hot water flow rate (primary circuit)
	hasPart	gas	Natural_Gas_Flow_Sensor	Gas consumption at boiler plant
boiler	hasPoint	sup1-4	Leaving_Hot_Water_Temperature_Sensor	Boiler 1-4 outlet water temp
	hasPoint	ret1-4	Entering_Hot_Water_Temperature_Sensor	Boiler 1-4 inlet water temp
	hasPoint	fire1-4	Firing_Rate_Sensor	Boiler 1-4 firing rate
pump	hasPoint	pmp1_pwr	Power_Sensor	Pump 1 power consumption
	hasPoint	pmp2_pwr	Power_Sensor	Pump 2 power consumption
	hasPoint	pmp1_spd	Speed_Command	Pump 1 speed command
	hasPoint	pmp2_spd	Speed_Command	Pump 2 speed command
	hasPoint	pmp_spd	Speed_Command	Main pump speed command
	hasPoint	pmp1_vfd	VFD_Enable_Command	Pump 1 VFD enable
	hasPoint	pmp2_vfd	VFD_Enable_Command	Pump 2 VFD enable
weather_station	hasPoint	t_out	Outside_Air_Temperature_Sensor	Outdoor drybulb temperature
hot_water_system	hasPart	enab	Enable_Command	System enable/disable command
	hasPart	oper	Enable_Status	System operation status

Key Summary by Type: - Loops (use hasPart): - Secondary Loop: 8 points - Primary Loop: 4 points
- Hot Water System: 2 points - Equipment (use hasPoint): - Boiler: 12 points (4 boilers) - Pump: 7 points - Weather Station: 1 point

Example 1: For secondary loop (uses hasPart), SPARQL query:

SELECT ?loop ?supply ?return WHERE {
    # Find secondary hot water loop (Loop uses hasPart)
    ?loop rdf:type brick:Hot_Water_Loop .
    FILTER(CONTAINS(LCASE(STR(?loop)), "secondary"))

    # Loops use brick:hasPart for sensors
    ?loop brick:hasPart ?supply .
    ?supply rdf:type brick:Leaving_Hot_Water_Temperature_Sensor .

    ?loop brick:hasPart ?return .
    ?return rdf:type brick:Entering_Hot_Water_Temperature_Sensor .
}

Example 2: For boiler sensors (uses hasPoint), SPARQL query:

SELECT ?boiler ?supply ?return WHERE {
    # Find boiler equipment (Equipment uses hasPoint)
    ?boiler rdf:type brick:Boiler .

    # Equipment use brick:hasPoint for sensors
    ?boiler brick:hasPoint ?supply .
    ?supply rdf:type brick:Leaving_Hot_Water_Temperature_Sensor .

    ?boiler brick:hasPoint ?return .
    ?return rdf:type brick:Entering_Hot_Water_Temperature_Sensor .
}

---

3. Write SPARQL Query

Add this function to find required sensors:

def find_required_sensors(graph):
    """
    Find supply and return temperature sensors on hot water loop

    Returns:
        Tuple of (loop, supply_sensor, return_sensor) or None
    """
    from hhw_brick.utils import query_sensors

    query = """
    SELECT ?loop ?supply ?return WHERE {
        # Find hot water loop (could be secondary_loop or primary_loop)
        ?loop rdf:type/rdfs:subClassOf* brick:Hot_Water_Loop .

        # Find supply sensor (part of loop)
        # In our system: 'sup' on secondary_loop, 'supp' on primary_loop
        ?loop brick:hasPart ?supply .
        ?supply rdf:type/rdfs:subClassOf* brick:Leaving_Hot_Water_Temperature_Sensor .

        # Find return sensor (part of loop)
        # In our system: 'ret' on secondary_loop, 'retp' on primary_loop
        ?loop brick:hasPart ?return .
        ?return rdf:type/rdfs:subClassOf* brick:Entering_Hot_Water_Temperature_Sensor .
    }
    """

    results = query_sensors(graph, [], custom_query=query)
    return results[0] if results else None

How it works: 1. Find any Hot_Water_Loop (secondary or primary) 2. Find supply sensor (Leaving temp) that's part of the loop - brick:hasPart establishes the point-equipment relationship 3. Find return sensor (Entering temp) that's part of the loop 4. Return first match or None

Equipment-Point Relationships: - Based on sensor_to_brick_mapping.yaml, points are assigned to equipment: - Secondary loop: sup, ret, flow, dp, hw, gas_u, sup_stpt, dp_stpt - Primary loop: supp, retp, flowp, gas - Boiler: sup1-4, ret1-4, fire1-4 - Pump: pmp1_pwr, pmp2_pwr, pmp1_spd, pmp2_spd, pmp1_vfd, pmp2_vfd - Weather station: t_out

---

4. Implement qualify()

Check if building has required sensors:

def qualify(brick_model_path):
    """
    Check if building has required sensors

    Args:
        brick_model_path: Path to Brick model (.ttl file)

    Returns:
        Tuple of (qualified: bool, details: dict)
    """
    print(f"\n{'='*60}")
    print(f"QUALIFY: Checking required sensors")
    print(f"{'='*60}\n")

    from rdflib import Graph

    # Load Brick model
    g = Graph()
    g.parse(brick_model_path, format="turtle")

    # Find sensors
    result = find_required_sensors(g)

    if result:
        loop, supply, return_sensor = result
        print(f"[OK] Building qualified")
        print(f"   Loop: {loop}")
        print(f"   Supply: {supply}")
        print(f"   Return: {return_sensor}\n")

        return True, {
            "loop": str(loop),
            "supply": str(supply),
            "return": str(return_sensor)
        }
    else:
        print(f"[FAIL] Building NOT qualified")
        print(f"   Missing: Supply and return sensors on hot water loop\n")
        return False, {}

Returns: - qualified=True + sensor details if building has sensors - qualified=False + empty dict if missing sensors

---

5. Test qualify()

Create test_qualify.py:

"""Test qualification"""
from pathlib import Path
import sys

app_dir = Path(__file__).parent
sys.path.insert(0, str(app_dir.parent.parent.parent))

from hhw_brick.applications.my_first_app.app import qualify

# Test with a Brick model
fixtures = Path(__file__).parent.parent.parent.parent / "tests" / "fixtures"
model_file = fixtures / "Brick_Model_File" / "building_29.ttl"

if model_file.exists():
    qualified, details = qualify(str(model_file))

    if qualified:
        print("✅ Test passed - building qualified")
        print(f"   Found sensors: {list(details.keys())}")
    else:
        print("⚠️  Building not qualified")
else:
    print("⚠️  Test file not found")

Run:

python test_qualify.py

---

6. Complete app.py So Far

Your app.py should now have:

#!/usr/bin/env python
# -*- coding: utf-8 -*-
"""My First Application"""

import sys
from pathlib import Path
import yaml

app_dir = Path(__file__).parent
package_dir = app_dir.parent.parent.parent
sys.path.insert(0, str(package_dir))

__all__ = ["qualify", "analyze", "load_config"]


def load_config(config_file=None):
    """Load configuration from YAML file"""
    # ...implementation from Step 2...


def find_required_sensors(graph):
    """Find required sensors using SPARQL"""
    # ...implementation from this step...


def qualify(brick_model_path):
    """Check if building has required sensors"""
    # ...implementation from this step...


# analyze() will be added in Step 4

---

Checkpoint

• Understand basic SPARQL patterns
• find_required_sensors() implemented
• qualify() function implemented
• Test finds qualified buildings
• Returns correct format: (bool, dict)

---

SPARQL Tips

Debug queries: 1. Start simple - find just the loop 2. Add one sensor at a time 3. Test in Brick Studio

Common patterns:

# Find by type
?equipment rdf:type brick:Hot_Water_Loop .

# Find with subclasses
?sensor rdf:type/rdfs:subClassOf* brick:Temperature_Sensor .

# Filter by name
FILTER(CONTAINS(LCASE(STR(?equipment)), "primary"))

# Relationships (use hasPart for Systems/Loops, hasPoint for Equipment)
?loop brick:hasPart ?point .        # For Hot_Water_Loop, Hot_Water_System
?equipment brick:hasPoint ?point .  # For Boiler, Pump, Weather_Station

---

Next Step

👉 Step 4: analyze Function - Part 1

In this step, you'll learn to write SPARQL queries to find sensors in Brick models and implement the qualify() function.

Goal of This Step

• Learn how to write SPARQL queries for Brick Schema
• Implement sensor discovery logic
• Create the qualify() function to check if buildings have required sensors

---

Step 3.1: Understanding Brick Schema

Before writing SPARQL, understand how Brick models buildings:

Brick uses RDF triples (Subject - Predicate - Object):

<equipment> <relationship> <point>

Example:

building:loop1 rdf:type brick:Hot_Water_Loop .
building:loop1 brick:hasPart building:temp_sensor1 .
building:temp_sensor1 rdf:type brick:Temperature_Sensor .

Common Relationships: - brick:hasPart - System/Loop has a point as part (used for Hot_Water_System, Hot_Water_Loop) - brick:hasPoint - Equipment has a point (used for Boiler, Pump, Weather_Station) - brick:isPointOf - Point belongs to equipment (inverse of hasPoint) - rdf:type - Entity is of a certain type - rdfs:subClassOf* - Includes subclasses (e.g., all types of temperature sensors)

---

Step 3.2: Learning SPARQL Basics

SPARQL is a query language for RDF data.

Basic SPARQL Pattern:

SELECT ?variable1 ?variable2 WHERE {
    ?variable1 predicate object .
    ?variable2 predicate ?variable1 .
}

Example - Find all temperature sensors:

SELECT ?sensor WHERE {
    ?sensor rdf:type/rdfs:subClassOf* brick:Temperature_Sensor .
}

Point-to-Equipment Relationships: In our system, points are connected to equipment/systems via two different relationships: - Systems/Loops use brick:hasPart (e.g., secondary_loop, primary_loop, hot_water_system) - Equipment use brick:hasPoint (e.g., boiler, pump, weather_station)

This mapping is defined in sensor_to_brick_mapping.yaml. For example: - secondary_loop hasPart: sup, ret, flow, dp, hw (Loops use hasPart) - primary_loop hasPart: supp, retp, flowp, gas (Loops use hasPart) - boiler hasPoint: sup1-4, ret1-4, fire1-4 (Equipment use hasPoint) - pump hasPoint: pmp1_pwr, pmp2_pwr, pmp1_spd, pmp2_spd (Equipment use hasPoint)

SPARQL Resources: - Brick Schema Docs: https://docs.brickschema.org/ - SPARQL Tutorial: https://www.w3.org/TR/sparql11-query/ - Brick Studio (Visual Tool): https://brickstudio.io/

---

Step 3.3: Write a Simple SPARQL Query

Let's create a query to find temperature sensors on a hot water loop.

Add this function to app.py:

def find_required_sensors(graph):
    """
    Find required sensors using SPARQL query

    Args:
        graph: RDF graph loaded from Brick model

    Returns:
        Tuple of (equipment, sensor1, sensor2) or None if not found

    Example:
        This query finds:
        - A Hot_Water_Loop (secondary_loop or primary_loop)
        - A Leaving_Hot_Water_Temperature_Sensor (supply) - part of that loop
        - An Entering_Hot_Water_Temperature_Sensor (return) - part of that loop

    Note:
        Based on sensor_to_brick_mapping.yaml:
        - secondary_loop has: sup (leaving), ret (entering)
        - primary_loop has: supp (leaving), retp (entering)
    """
    from hhw_brick.utils import query_sensors

    # SPARQL query to find sensors
    query = """
    SELECT ?equipment ?supply_sensor ?return_sensor WHERE {
        # Find a Hot Water Loop (secondary_loop or primary_loop)
        ?equipment rdf:type/rdfs:subClassOf* brick:Hot_Water_Loop .

        # Find supply temperature sensor (part of the loop)
        # This could be 'sup' on secondary_loop or 'supp' on primary_loop
        ?equipment brick:hasPart ?supply_sensor .
        ?supply_sensor rdf:type/rdfs:subClassOf* brick:Leaving_Hot_Water_Temperature_Sensor .

        # Find return temperature sensor (part of the loop)
        # This could be 'ret' on secondary_loop or 'retp' on primary_loop
        ?equipment brick:hasPart ?return_sensor .
        ?return_sensor rdf:type/rdfs:subClassOf* brick:Entering_Hot_Water_Temperature_Sensor .
    }
    """

    # Execute query using HHW Brick utility
    results = query_sensors(graph, [], custom_query=query)

    # Return first result or None
    return results[0] if results else None

Understanding the Query:

1. Find equipment:

   ?equipment rdf:type/rdfs:subClassOf* brick:Hot_Water_Loop .


2. ?equipment is a variable (like a wildcard)
3. rdf:type/rdfs:subClassOf* means "is a type of or subtype of"

4. Finds any Hot_Water_Loop

5. Find supply sensor:

   ?equipment brick:hasPart ?supply_sensor .
   ?supply_sensor rdf:type/rdfs:subClassOf* brick:Leaving_Hot_Water_Temperature_Sensor .


6. First line: loop has this sensor as a part

7. Second line: sensor is a Leaving (supply) temperature sensor

8. Find return sensor:

   ?equipment brick:hasPart ?return_sensor .
   ?return_sensor rdf:type/rdfs:subClassOf* brick:Entering_Hot_Water_Temperature_Sensor .


9. Similar pattern for return temperature sensor

---

Step 3.4: Add Filters (Optional)

You can add filters to make queries more specific.

Example - Filter by name:

SELECT ?equipment ?supply_sensor ?return_sensor WHERE {
    ?equipment rdf:type/rdfs:subClassOf* brick:Hot_Water_Loop .

    # Filter to only primary loops (name contains "primary")
    FILTER(CONTAINS(LCASE(STR(?equipment)), "primary"))

    ?equipment brick:hasPart ?supply_sensor .
    ?supply_sensor rdf:type/rdfs:subClassOf* brick:Leaving_Hot_Water_Temperature_Sensor .

    ?equipment brick:hasPart ?return_sensor .
    ?return_sensor rdf:type/rdfs:subClassOf* brick:Entering_Hot_Water_Temperature_Sensor .
}

Filter Functions: - CONTAINS(string, substring) - Check if string contains substring - LCASE(string) - Convert to lowercase - STR(uri) - Convert URI to string

---

Step 3.5: Implement qualify() Function

Now create the qualify() function that uses the SPARQL query.

Add this to app.py:

def qualify(brick_model_path):
    """
    Check if building has required sensors

    Args:
        brick_model_path (str|Path): Path to Brick model file (.ttl)

    Returns:
        Tuple of (qualified: bool, details: dict)
        - qualified: True if building has all required sensors
        - details: Dictionary with sensor URIs if qualified, empty dict otherwise

    Example:
        >>> qualified, details = qualify("building_model.ttl")
        >>> if qualified:
        ...     print(f"Loop: {details['equipment']}")
        ...     print(f"Supply sensor: {details['supply']}")
        ...     print(f"Return sensor: {details['return']}")
    """
    print(f"\n{'='*60}")
    print(f"QUALIFY: Checking required sensors")
    print(f"{'='*60}\n")

    # Load Brick model
    from rdflib import Graph

    g = Graph()
    g.parse(brick_model_path, format="turtle")

    # Find sensors using SPARQL
    result = find_required_sensors(g)

    if result:
        equipment, supply_sensor, return_sensor = result

        # Building is qualified
        print(f"[OK] Building qualified")
        print(f"   Equipment: {equipment}")
        print(f"   Supply Sensor: {supply_sensor}")
        print(f"   Return Sensor: {return_sensor}\n")

        return True, {
            "equipment": str(equipment),
            "supply": str(supply_sensor),
            "return": str(return_sensor)
        }
    else:
        # Building not qualified
        print(f"[FAIL] Building NOT qualified")
        print(f"   Missing: Required sensors (supply and return temperature on hot water loop)\n")

        return False, {}

Understanding the Function:

1. Print header: Inform user what's happening
2. Load model: Parse Brick .ttl file into RDF graph
3. Query sensors: Use SPARQL to find required sensors
4. Check result:
5. If found: return True with sensor details
6. If not found: return False with empty dict

---

Step 3.6: Test qualify() Function

Create a test script to verify qualify() works.

Create test_qualify.py:

"""
Test script for qualify function
"""

from pathlib import Path
import sys

# Add parent directory to path
app_dir = Path(__file__).parent
sys.path.insert(0, str(app_dir.parent.parent.parent))

from hhw_brick.applications.my_first_app.app import qualify

def test_qualify():
    """Test qualification function"""
    print("Testing qualify() function...\n")

    # Path to test Brick models
    fixtures = Path(__file__).parent.parent.parent.parent / "tests" / "fixtures" / "Brick_Model_File"

    if not fixtures.exists():
        print("Warning: Test fixtures not found. Skipping test.")
        return

    # Test on multiple buildings
    for model_file in fixtures.glob("*.ttl"):
        print(f"\n{'='*60}")
        print(f"Testing: {model_file.name}")
        print(f"{'='*60}")

        try:
            qualified, details = qualify(str(model_file))

            if qualified:
                print(f"✓ Building qualifies!")
                print(f"  Found sensors:")
                for key, value in details.items():
                    print(f"    {key}: {value.split('#')[-1]}")
            else:
                print(f"✗ Building does not qualify")

        except Exception as e:
            print(f"❌ Error: {e}")

    print(f"\n{'='*60}")
    print("Test complete!")
    print(f"{'='*60}\n")

if __name__ == "__main__":
    test_qualify()

Run the test:

python test_qualify.py

---

Step 3.7: Your app.py Structure So Far

Your app.py should now have:

#!/usr/bin/env python
# -*- coding: utf-8 -*-
"""My First Application"""

import sys
from pathlib import Path
import yaml

# Setup paths
app_dir = Path(__file__).parent
package_dir = app_dir.parent.parent.parent
sys.path.insert(0, str(package_dir))

__all__ = ["qualify", "analyze", "load_config"]


def load_config(config_file=None):
    """Load configuration from YAML file"""
    # ... implementation from Step 2 ...


def find_required_sensors(graph):
    """Find required sensors using SPARQL query"""
    # ... implementation from this step ...


def qualify(brick_model_path):
    """Check if building has required sensors"""
    # ... implementation from this step ...


# analyze() will be added in next step

---

Checkpoint

Before proceeding, verify:

• find_required_sensors() function is implemented
• SPARQL query is correct and finds sensors
• qualify() function is implemented
• Function returns (bool, dict) tuple
• Test script runs and finds qualified buildings

---

Next Steps

✅ Qualification logic complete!

👉 Continue to Step 4: Write analyze Function - Part 1

---

SPARQL Tips

Debugging SPARQL Queries:

1. Start simple: First find just the equipment

   SELECT ?equipment WHERE {
       ?equipment rdf:type brick:Hot_Water_Loop .
   }


2. Add one constraint at a time: Then add sensors

   SELECT ?equipment ?sensor WHERE {
       ?equipment rdf:type brick:Hot_Water_Loop .
       ?equipment brick:hasPart ?sensor .
   }


3. Add type filters: Finally filter sensor types

   SELECT ?equipment ?sensor WHERE {
       ?equipment rdf:type brick:Hot_Water_Loop .
       ?equipment brick:hasPart ?sensor .
       ?sensor rdf:type brick:Temperature_Sensor .
   }


Common SPARQL Patterns:

# Find all points of a system/loop (hasPart)
?system brick:hasPart ?point .

# Find all points of equipment (hasPoint)
?equipment brick:hasPoint ?point .

# Find equipment a point belongs to (inverse)
?point brick:isPointOf ?equipment .

# Find by exact type
?entity rdf:type brick:SomeClass .

# Find by type including subclasses
?entity rdf:type/rdfs:subClassOf* brick:SomeClass .

# Optional relationships (won't fail if missing)
OPTIONAL { ?equipment brick:hasPart ?optionalPoint . }

# Filter by property value
?point brick:hasUnit "degreesCelsius" .

---

Common Issues

Issue: Query returns no results
Solution: - Check sensor type names (case-sensitive!) - Try without rdfs:subClassOf* first - Use Brick Studio to explore the model

Issue: ImportError: cannot import name 'query_sensors'
Solution: Make sure you added sys.path.insert(0, ...) at top of file

Issue: Multiple results returned
Solution: Add filters or take first result: results[0]

---

Resources

Learn More About SPARQL for Brick: - Brick Schema Documentation: https://docs.brickschema.org/ - Brick Query Examples: https://docs.brickschema.org/query/index.html - SPARQL 1.1 Specification: https://www.w3.org/TR/sparql11-query/ - Brick Studio (Interactive): https://brickstudio.io/

Brick Sensor Types: - Temperature: Leaving_Hot_Water_Temperature_Sensor, Entering_Hot_Water_Temperature_Sensor - Flow: Water_Flow_Sensor, Hot_Water_Flow_Sensor - Power: Thermal_Power_Sensor, Electric_Power_Sensor - Full list: https://brickschema.org/ontology/
